Uplec

FWDM Fast Patch Multiplexer

FWDM Fast Patch Multiplexer

£300.00 GBP
£300.00 GBP
Sale Sold out
Tax included.
×
FWDM Fast Patch Multiplexer

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

FWDM Fast Patch Multiplexer

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

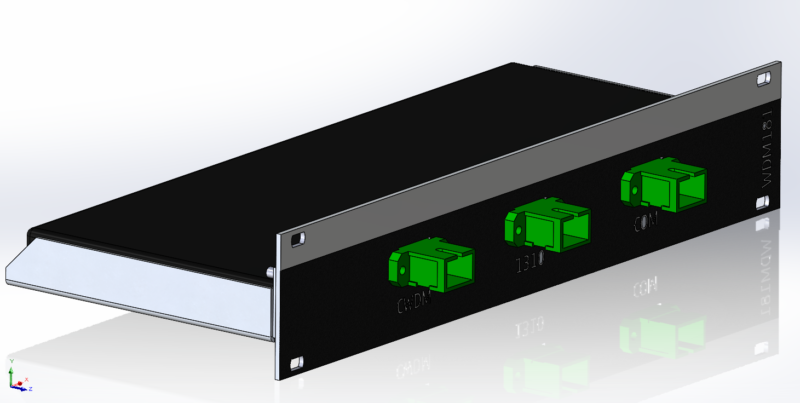

The WDM181-FP is a high isolation (40dB) filter type bi-directional multiplexer suitable for single mode fibre optic communication.  The device is designed to fit into a PPFR1/A at 1/2 width. The connectors are SC/APC. SC/APC fibre cables should be used to interface with this product and most WDM hardware.

Tech Specifications
Standard/Conforms to RoHS compliant;
RoHS2011/65/EU;
Telcordia GR-1209-CORE,
GR-1221-CORE
Operating Temperature (°C) -10 to 55
Width  (mm) 25
Height (mm) 128
Depth (mm) 173
1550 pass Channel Bandwidth (nm) 1460-1620
1310 reflect Channel Bandwidth (nm) 1260-1360
Max Pass Channel IL (dB) 1.10
Max Reflect Channel IL (dB) 1.10
Min Pass Channel Isolation (dB) 40
Min Reflect Channel Isolation (dB) 40
Max Pass Channel Ripple (dB) 0.30
Max Reflect Channel Ripple (dB) 0.30
Min Return Loss (dB) 45
Min Directivity (dB) 50
Max PDL (dB) 0.20
